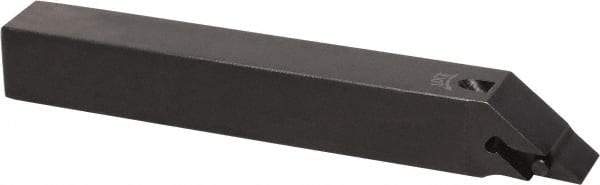

Kyocera - AVJB, Left Hand Cut, 93° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 120mm OAL, VB.. 22.., VC.. 22.. Insert Compatibility, Series AVJB
Item #: 50478973
Brand: Kyocera
Model #: 8834849
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | AVJB |
| Rake | Neutral |
| Rake Angle | 0 (Radial) |
| Series | AVJB |
| Lead Angle | 93 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | VB.. 22..; VC.. 22.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
