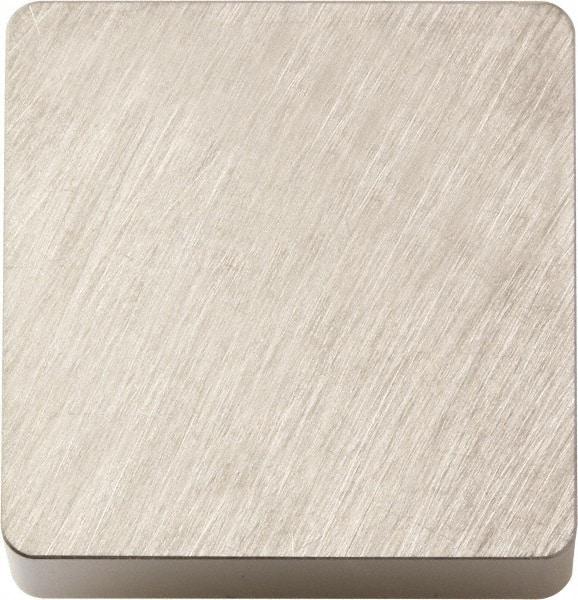

Kyocera - SNG435 Grade KS6050 Ceramic Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 5/64" Corner Radius
Item #: 50478676
Brand: Kyocera
Model #: 8834150
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNG |
| Insert Size | 435 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0781 |
| Manufacturer's Grade | KS6050 |
| Coating | Uncoated |
| ISO Number | SNG120420T02025 |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | SNG435T00825 KS6050 |
| Primary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Square |
