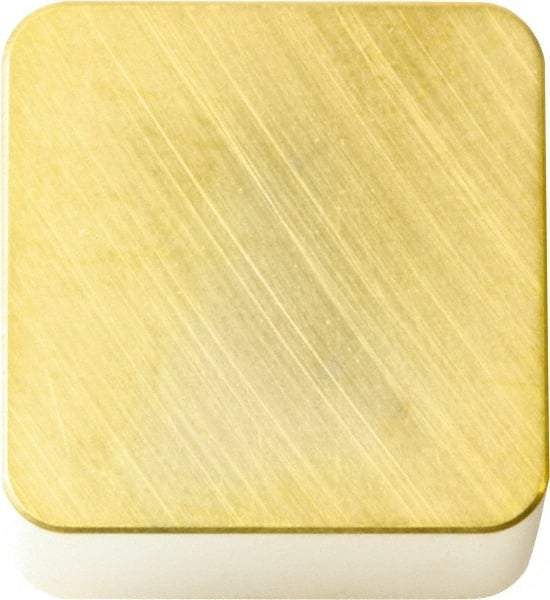

Kyocera - SNG454 Grade A66N Ceramic Turning Insert - TiN Finish, 90° Square, 1/2" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 50462548
Brand: Kyocera
Model #: 8807057
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNG |
| Insert Size | 454 |
| Material | Ceramic |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.5875 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | A66N |
| Coating | TiN |
| ISO Number | SNG120716S01525 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | SNG454T00625AA A66N |
| Primary Workpiece Material | H |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Square |
