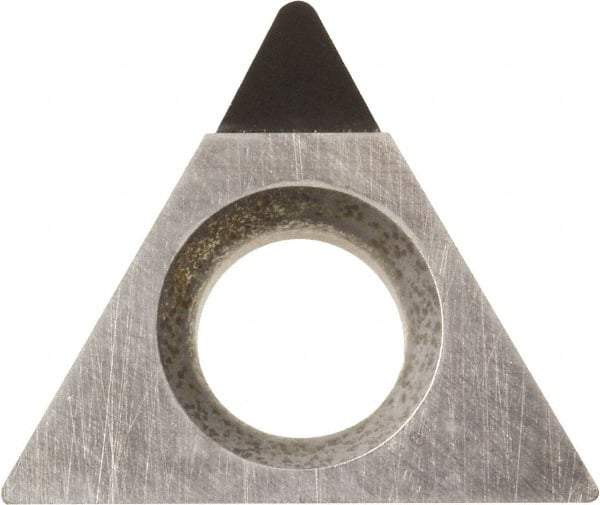

Kyocera - TPMH1.81.50.5 Grade KPD001 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 50460435
Brand: Kyocera
Model #: 8830927
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPMH |
| Insert Size | 1.81.50.5 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Material Grade | Super Micrograin |
| Hole Diameter (mm) | 3.00 |
| Hole Diameter (Decimal Inch) | 0.1180 |
| ISO Number | TPMH090202NE |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPMH181505NE KPD001 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
