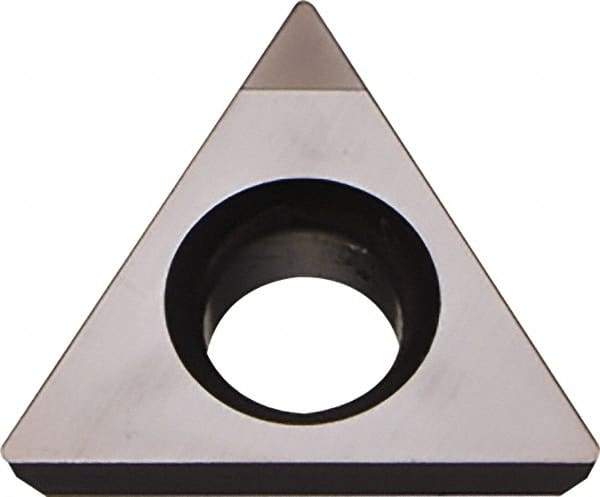

Kyocera - TPGB1.51.51 Grade KPD001 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 3/16" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50460211
Brand: Kyocera
Model #: 8815145
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPGB |
| Insert Size | 1.51.51 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Material Grade | Super Micrograin |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | TPGB80204 |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPGB15151 KPD001 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
