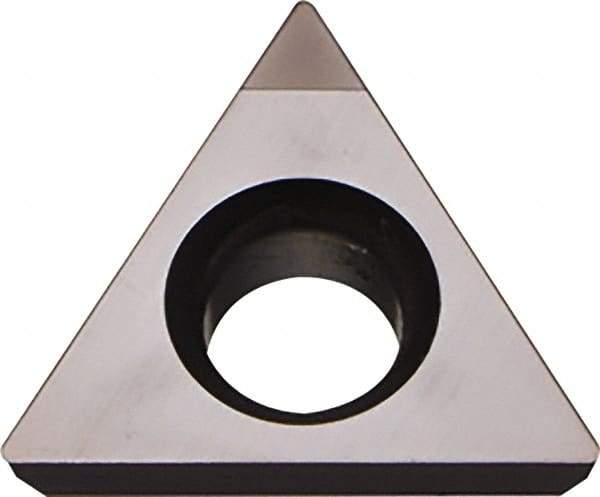

Kyocera - TPGB1.51.50.5 Grade KPD010 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 3/16" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 50460203
Brand: Kyocera
Model #: 8815138
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPGB |
| Insert Size | 1.51.50.5 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KPD010 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| ISO Number | TPGB80202 |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPGB151505 KPD010 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
