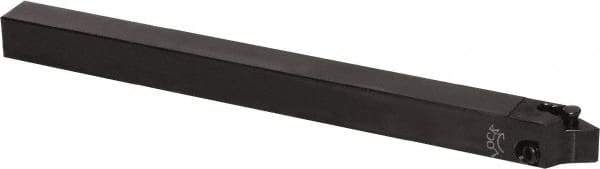

Kyocera - ADNC, Right Hand Cut, 63° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Neutral Rake Indexable Turning Toolholder - 6" OAL, DC.. Insert Compatibility, Series ADNC
Item #: 50454917
Brand: Kyocera
Model #: 8800136
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | ADNC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | ADNC |
| Lead Angle | 63 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | DC.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
