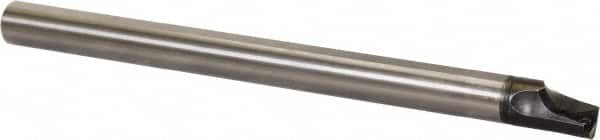

Kyocera - 22mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, S-STLC-A Indexable Boring Bar - 36mm Max Bore Depth, TCGT 215.., TCMT 215.. Insert, Screw Holding Method
Item #: 50454248
Brand: Kyocera
Model #: 8829092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-STLC-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 22.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.8661 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 36.00 |
| Maximum Bore Depth (Decimal Inch) | 1.4173 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | TCGT 215..; TCMT 215.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 11.20 |
| Center to Cutting Edge (Decimal Inch) | 0.4409 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -6 |
| Complete Insert Compatibility | TCGT 21502R/L; TCGT 21505R/L; TCGT 2151R/L; TCMT 21505HQ; TCMT 2151HQ; TCMT 2152HQ |
| Toolholder Material | Steel |
