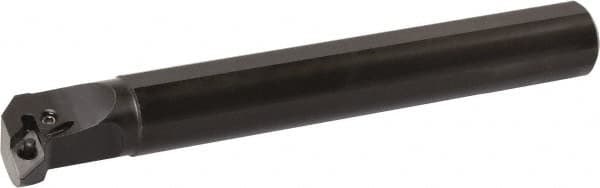

Kyocera - 1.26" Min Bore Diam, 8" OAL, 1" Shank Diam, A...PDUN Indexable Boring Bar - 1.37" Max Bore Depth, DNGG 33.., DNMG 33.. Insert, Pin Lock Assembly Holding Method
Item #: 50454024
Brand: Kyocera
Model #: 8820481
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A...PDUN |
| Minimum Bore Diameter (Decimal Inch) | 1.2600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.3700 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DNGG 33..; DNMG 33.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 32 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -15 |
| Complete Insert Compatibility | DNGG 3305R/L-S; DNGG 331R/L; DNGG 331R/L-S; DNGG 332R/L; DNGG 332R/L-S; DNMG 3305HQ; DNMG 331GP; DNMG 331GS; DNMG 331HQ; DNMG 332GP; DNMG 332GS |
| Toolholder Material | Steel |
