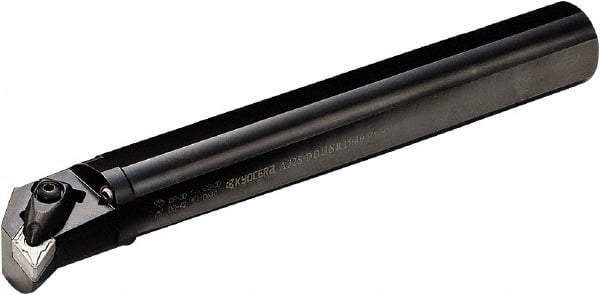

Kyocera - 1-1/2" Min Bore Diam, 12" OAL, 1" Shank Diam, DDUN Indexable Boring Bar - 1.575" Max Bore Depth, DNMG 43.. Insert, Screw Clamping Holding Method
Item #: 50454008
Brand: Kyocera
Model #: 8605953
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | DDUN |
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.5750 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DNMG 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -15 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Complete Insert Compatibility | DNMG 431MQ; DNMG 431MS; DNMG 431PP; DNMG 431PQ; DNMG 432MS; DNMG 432PG; DNMG 432PQ |
| Toolholder Material | Steel |
