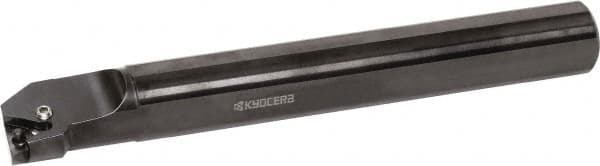

Kyocera - 30mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, S...PTUN Indexable Boring Bar - 42mm Max Bore Depth, TNGA 33.., TNGG 33.., TNMA 33.., TNMG 33.., TNMM 33.. Insert, Pin Lock Assembly Holding Method
Item #: 50453950
Brand: Kyocera
Model #: 8813300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S...PTUN |
| Minimum Bore Diameter (mm) | 30.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.1811 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 42.00 |
| Maximum Bore Depth (Decimal Inch) | 1.6535 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | TNGA 33..; TNGG 33..; TNMA 33..; TNMG 33..; TNMM 33.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative (Axial) |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 15.50 |
| Center to Cutting Edge (Decimal Inch) | 0.6102 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -6 |
| Complete Insert Compatibility | TNGA 3302S00525ME; TNGA 3302S00525SE; TNGA 3305S00525ME; TNGA 3305S00525SE; TNGA 331; TNGA 331S00245MEP; TNGA 331S00525; TNGA 331S00525ME; TNGA 331S00525SE; TNGA 331S00730MET; TNGA 331S00730SET; TNGA 331S00825; TNGA 331S01630MEH; TNGA 331T00515; TNGA 331T |
| Toolholder Material | Steel |
