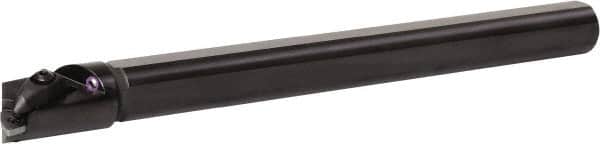

Kyocera - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-DWLN Indexable Boring Bar - 50mm Max Bore Depth, WNGA 0804.., WNGG 0804.., WNMG 0804.., WNMM 0804.. Insert, Screw Clamping Holding Method
Item #: 50453893
Brand: Kyocera
Model #: 8842121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DWLN |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | WNGA 0804..; WNGG 0804..; WNMG 0804..; WNMM 0804.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Rake Angle | -13 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Complete Insert Compatibility | WNGA 0804..; WNGG 0804..; WNMG 0804..; WNMM 0804.. |
| Toolholder Material | Steel |
