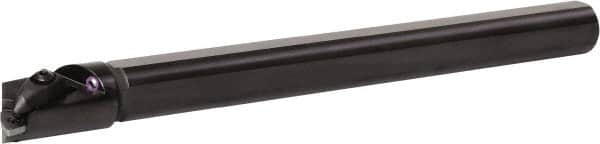

Kyocera - 1-3/4" Min Bore Diam, 12" OAL, 1-1/2" Shank Diam, DWLN Indexable Boring Bar - 2.362" Max Bore Depth, WNMG 43.. Insert, Screw Clamping Holding Method
Item #: 50453828
Brand: Kyocera
Model #: 8606616
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | DWLN |
| Minimum Bore Diameter (Decimal Inch) | 1.7500 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.3620 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | WNMG 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.9050 |
| Rake Angle | -13 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Complete Insert Compatibility | WNMG 431MQ; WNMG 431MS; WNMG 431PP; WNMG 431PQ; WNMG 432MS; WNMG 432PG; WNMG 432PQ |
| Toolholder Material | Steel |
