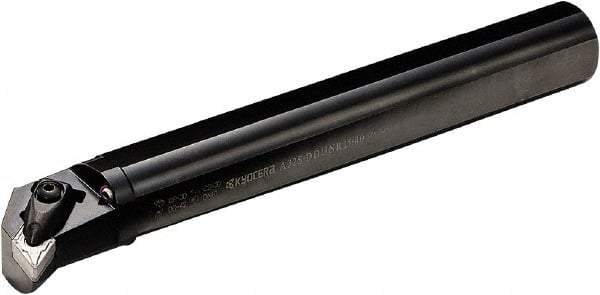

Kyocera - 63mm Min Bore Diam, 350mm OAL, 50mm Shank Diam, A-DDUN Indexable Boring Bar - 65mm Max Bore Depth, DN.G 1504.., DNGA 1504.., DNMG 1504.., DNMM 1504.. Insert, Clamp Holding Method
Item #: 50453794
Brand: Kyocera
Model #: 8842117
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDUN |
| Minimum Bore Diameter (mm) | 63.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 65.00 |
| Maximum Bore Depth (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Compatibility | DN.G 1504..; DNGA 1504..; DNMG 1504..; DNMM 1504.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -12 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Complete Insert Compatibility | DNMG 150402GP; DNMG 150404CQ; DNMG 150404CS; DNMG 150404GP; DNMG 150404GS; DNMG 150404HK; DNMG 150404HQ; DNMG 150404HS; DNMG 150404PS; DNMG 150404TN-V; DNMG 150408CJ; DNMG 150408CQ; DNMG 150408CS; DNMG 150408GP; DNMG 150408GS; DNMG 150408GT; DNMG 150408HK |
| Toolholder Material | Steel |
