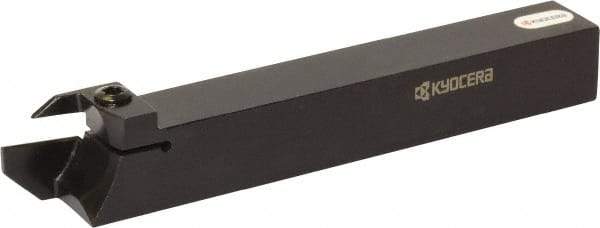

Kyocera - KGM, External, Left Hand, 16.002mm Max Depth of Cut, 2 to 3mm Groove Width, Indexable Grooving Tool Holder - Multiple Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 120mm OAL
Item #: 50453653
Brand: Kyocera
Model #: 8834272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | KGM |
| Insert Compatibility | GM..; GM.. 1520..; GM.. 2020..; GM.. 2420..; GM.. 2520..; GM.. 3020..; GM.. 3520..; GM.. 4020..; GM.. 5020..; GM.. 6020..; GM.. 8030..; GM.. TK.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | KGM |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Insert Holding Method | Screw |
| igrvh Maximum Bore Depth (mm) | 24.50 |
| Back of Bar to Cutting Edge (mm) | 12.15 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4783 |
| Head Height (Decimal Inch) | 0.7874 |
| Head Height (mm) | 20.00 |
| Head Length (mm) | 24.50 |
| Head Length (Decimal Inch) | 0.9646 |
| Shank Length (mm) | 95.50 |
| Shank Length (Decimal Inch) | 3.7598 |
| Manufacturers Catalog Number | KGML1616JX2 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | GMG 2520-030MG; GMG 3020-000MS; GMG 3020-020MS; GMG 3020-030MG; GMG 3020-040MS; GMG 3020-150R; GMG 3020-150RU; GMG 3520-030MG; GMG 4020-020MS; GMG 4020-040MG; GMG 4020-040MS; GMG 4020-080MS; GMG 4020-200R; GMG 4020-200RU; GMG 5020-040MG; GMG 5020-040MS; G |
