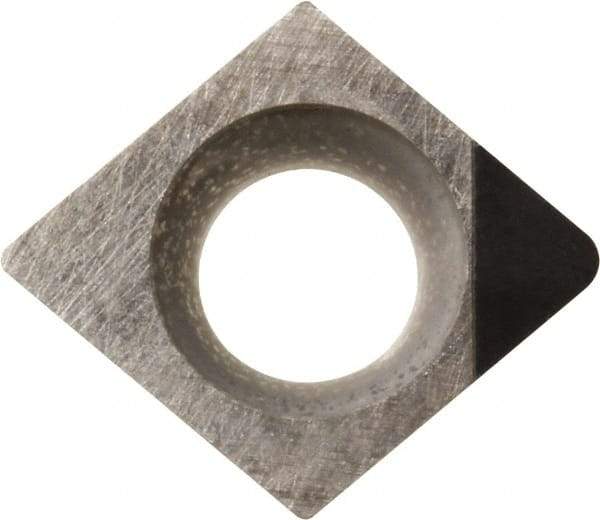

Kyocera - CCGW32.51 Grade KPD010 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 50445204
Brand: Kyocera
Model #: 8805432
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 32.51 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KPD010 |
| Coating | Uncoated |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | CCGW09T304 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGW3251 KPD010 |
| Primary Workpiece Material | S |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
