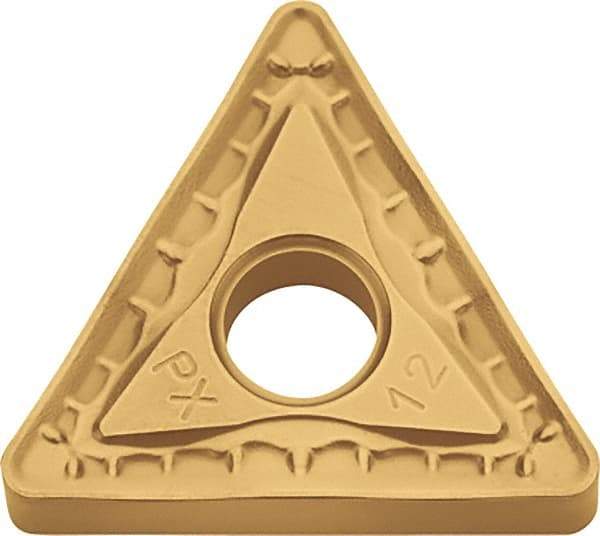

Kyocera - TNMM333 Grade KPD010 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 50444934
Brand: Kyocera
Model #: 8814804
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TNMM |
| Insert Size | 333 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KPD010 |
| Coating | Uncoated |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMM160412M |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | TNMM333M KPD010 |
| Primary Workpiece Material | S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
