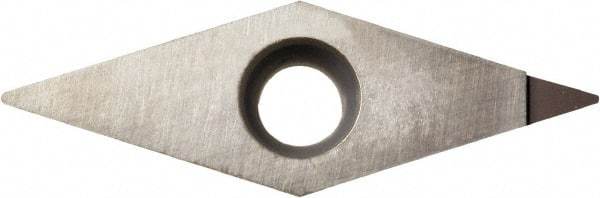

Kyocera - VBMT330.5 Grade KPD001 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 50444868
Brand: Kyocera
Model #: 8836995
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 330.5 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Material Grade | Super Micrograin |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBMT3305SE KPD001 |
| Primary Workpiece Material | S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
