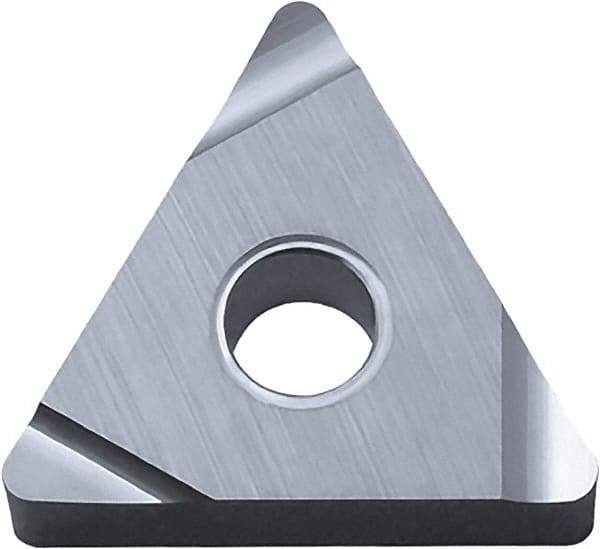

Kyocera - TNGG330.5 S Grade PV7005 Cermet Turning Insert - TiC/TiN (Megacoat) Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 50440536
Brand: Kyocera
Model #: 8837320
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNGG |
| Insert Size | 330.5 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PV7005 |
| Coating | TiC/TiN (Megacoat) |
| Chip Breaker | S |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNGG160402R-S |
| Rake | Negative |
| Rake Angle | 15 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TNGG3305RS PV7005 |
| Primary Workpiece Material | K |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
