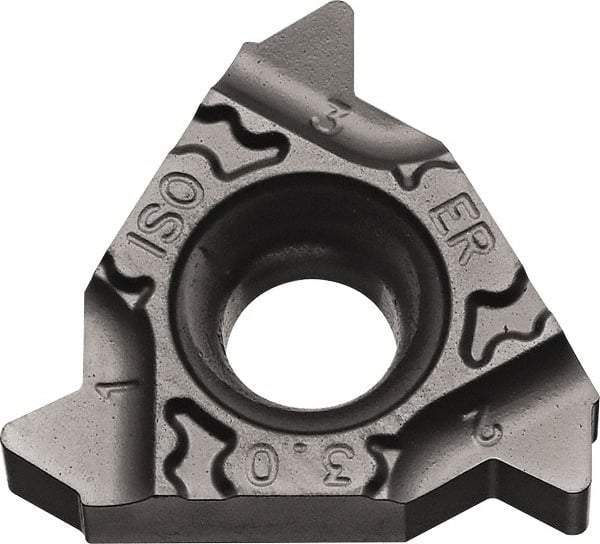

Kyocera - 16ER External Right Hand ISO Laydown Threading Insert - Grade PR1115, TiAlN Coated Carbide, 9.53mm Inscribed Circle
Item #: 50429166
Brand: Kyocera
Model #: 8828450
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | ISO |
| Manufacturer's Grade | PR1115 |
| External Pitch (mm) | 2 |
| Pitch (mm) | 2 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (Decimal Inch) | 0.1449 |
| Thickness (mm) | 3.68 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0098 |
