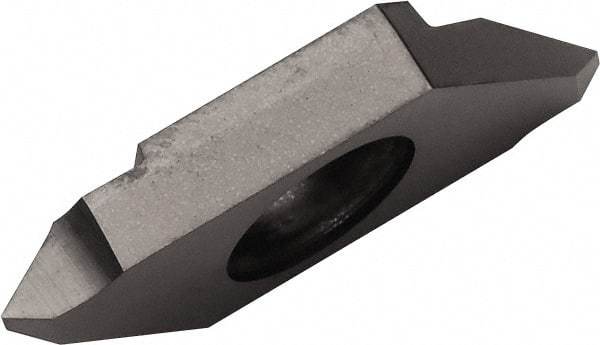

Kyocera - TKFT12 Grade PR1535, External ISO, Partial Profile 60° & UN Threading Insert - 0.25 to 1.25mm & 48 to 24 TPI Ext Pitch, Left Hand Insert, Megacoat Nano Finish, Carbide
Item #: 50428945
Brand: Kyocera
Model #: 8844731
Exact Tooling IR#: 04
Features and Benefits
MEGACOAT Nano provides good adhesion and wear resistance. It is designed with a TiN coating that offers good visibility of the cutting edge and a high-quality surface finish.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TKFT |
| Insert Size | 12 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | ISO; Partial Profile 60 Degrees; UN |
| Manufacturer's Grade | PR1535 |
| External Pitch/TPI | 0.25-1.25 mm; 48-24 TPI |
| Coating | Megacoat Nano |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | TKFT12LA60005 PR1535 |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.001969 |
| Width of Cutting Tip (mm) | 2.50 |
| Width of Cutting Tip (Decimal Inch) | 0.0984 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Series | TKFT |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (mm) | 8.70 |
| Tip to Top of Insert (Decimal Inch) | 0.3425 |
| Manufacturers Catalog Number | TKFT12LA60005 |
