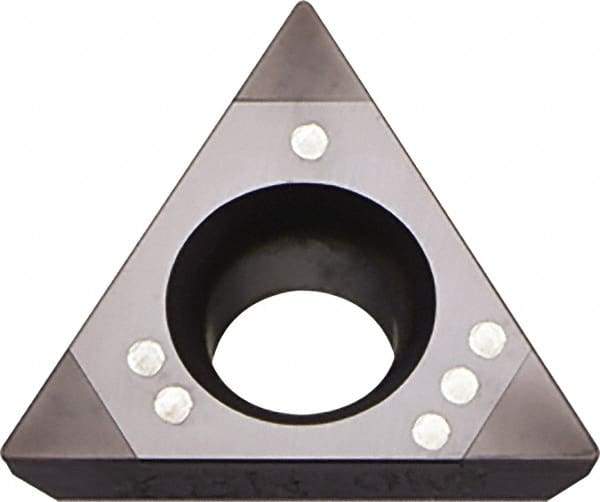

Kyocera - TPGB220.5 Grade KBN10M CBN Turning Insert - Megacoat Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 50425644
Brand: Kyocera
Model #: 8826865
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TPGB |
| Insert Size | 220.5 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KBN10M |
| Coating | Megacoat |
| Hole Diameter (mm) | 3.30 |
| Hole Diameter (Decimal Inch) | 0.1300 |
| ISO Number | TPGB110302S01035MET |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPGB2205S00435MET |
| Primary Workpiece Material | H |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered & Honed |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
