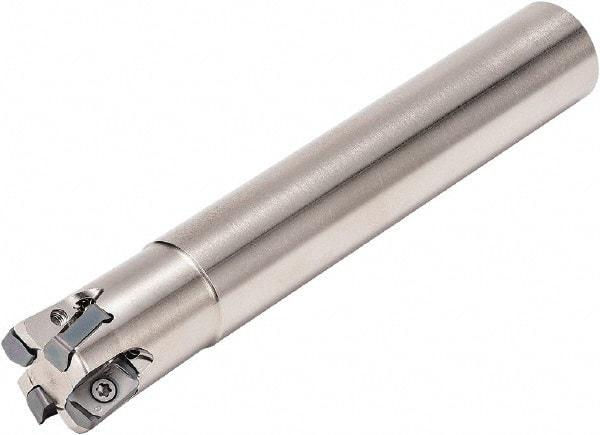

Kyocera - 22mm Cut Diam, 1mm Max Depth, 20mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, LOGU 030310ER-GM Insert, MFH Toolholder, Through Coolant
Item #: 50422112
Brand: Kyocera
Model #: 8844030
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 22.00 |
| Cutting Diameter (Decimal Inch) | 0.866142 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.787402 |
| Number of Cutter Inserts | 4 |
| Insert Style | LOGU 030310ER-GM |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Maximum RPM | 14700 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Head Length (mm) | 30.00 |
| Manufacturers Catalog Number | MFH 22-S20-03-4T |
