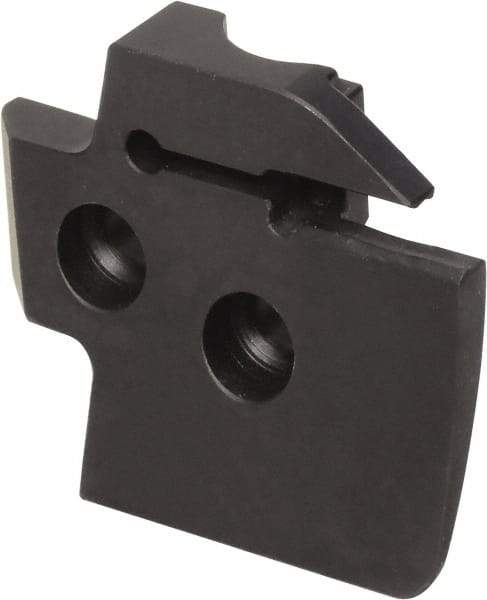

Kyocera - 5.08mm Groove Width, 32.004mm Max Depth of Cut, Right Hand Cut, KGDF Indexable Grooving Blade - GD..20N-040.. Insert Style
Item #: 50421619
Brand: Kyocera
Model #: 8834719
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Blade Style | KGDF |
| Minimum Workpiece Diameter (mm) | 235.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 9.2520 |
| Blade Height (mm) | 41.50 |
| Blade Height (Decimal Inch) | 1.6339 |
| Blade Width (mm) | 6.00 |
| Blade Width (Decimal Inch) | 0.2362 |
| Maximum Groove Width (mm) | 5.08 |
| Maximum Groove Width (Decimal Inch) | 0.2000 |
| Blade Overall Length (Decimal Inch) | 2.6100 |
| Manufacturers Catalog Number | KGDFR2356DC |
| Insert Style | GD..20N-040.. |
| Complete Insert Compatibility | GDFM 6020N-040DM; GDFM 6020N-040GM; GDFMS 6020N-040DM |
| MSC/Manufacturer Number | 8834719 |
