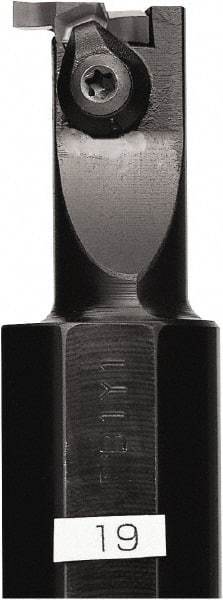

Kyocera - GIV, Internal, Right Hand, 2.2mm Max Depth of Cut, 0.031 to 0.122" Groove Width, Indexable Grooving Tool Holder - GV.. 020A Insert Compatibility, 19mm Shank Width, 160mm OAL
Item #: 50419589
Brand: Kyocera
Model #: 8806285
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 2.20 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.1220 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Toolholder Style | GIV |
| Insert Compatibility | GV.. 020A |
| Shank Width/Diameter (mm) | 19.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7480 |
| Series | GIV |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 16.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.6299 |
| igrvh Maximum Bore Depth (mm) | 28.00 |
| Center to Cutting Edge (mm) | 8.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 132.00 |
| Shank Length (Decimal Inch) | 5.1969 |
| Manufacturers Catalog Number | GIVR16201A |
| Complete Insert Compatibility | GVR/L 100-020A; GVR/L 120-020A; GVR/L 125-020A; GVR/L 140-020A; GVR/L 145-020A; GVR/L 170-020A; GVR/L 185-020A; GVR/L 195-020A; GVR/L 200-020A; GVR/L 225-020A; GVR/L 250-020A; GVR/L 275-020A; GVR/L 300-020A; GVR/L 340-020A |
| Minimum BoreDiameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
