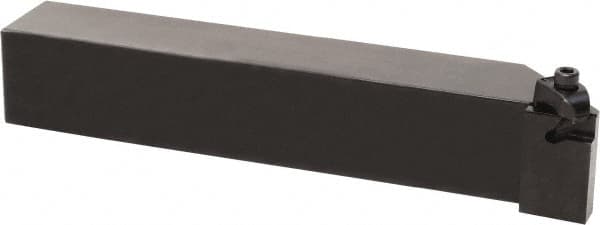

Kyocera - KKCE, External, Right Hand, 0.21" Max Depth of Cut, Indexable Grooving Tool Holder - KCFR/L.. 3 Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 50419175
Brand: Kyocera
Model #: 8604036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | KKCE |
| Insert Compatibility | KCFR/L.. 3 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | KKCE |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp or Screw |
| Maximum Hole Depth (Decimal Inch) | 0.7500 |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Height (Decimal Inch) | 1.4650 |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 5.2500 |
| Manufacturers Catalog Number | KKCER163D |
| Height to Shank Top (Decimal Inch) | 1.0000 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | KCFP 3125R/L; KCFP 3156R/L; KCFP 3189R/L |
