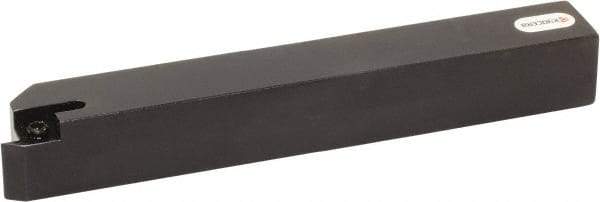

Kyocera - SABS, Right Hand Cut, 75° Lead Angle, 10mm Shank Height x 10mm Shank Width, Indexable Turning Toolholder - 120mm OAL, ABS..40.. Insert Compatibility, Series SABS
Item #: 50418938
Brand: Kyocera
Model #: 8835035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SABS |
| Series | SABS |
| Lead Angle | 75 |
| Shank Width (mm) | 10.00 |
| Shank Width (Decimal Inch) | 0.3937 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | ABS..40.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 7.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2913 |
| Insert Width (mm) | 3.97 |
| Insert Width (Decimal Inch) | 0.1563 |
