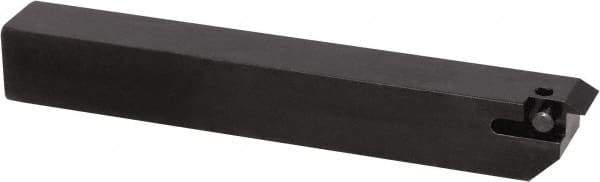

Kyocera - AABS, Right Hand Cut, 75° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Indexable Turning Toolholder - 120.65mm OAL, ABS..40.. Insert Compatibility, Series AABS
Item #: 50418789
Brand: Kyocera
Model #: 8835952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | AABS |
| Series | AABS |
| Lead Angle | 75 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 120.65 |
| Overall Length (Decimal Inch) | 4.7500 |
| Insert Compatibility | ABS..40.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Inscribed Circle (Decimal Inch) | 1.8750 |
| Insert Width (mm) | 3.97 |
| Insert Width (Decimal Inch) | 0.1563 |
