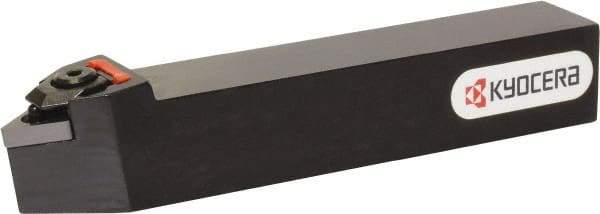

Kyocera - WTEN, Neutral Cut, 60° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, TN.. 33.. Insert Compatibility, Series WTEN
Item #: 50418078
Brand: Kyocera
Model #: 8804164
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | WTEN |
| Rake | Negative |
| Rake Angle | -8.50 |
| Series | WTEN |
| Lead Angle | 60 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | TN.. 33.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Chamfering; External Turning |
| Insert Holding Method | Wedge Clamp |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4921 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
