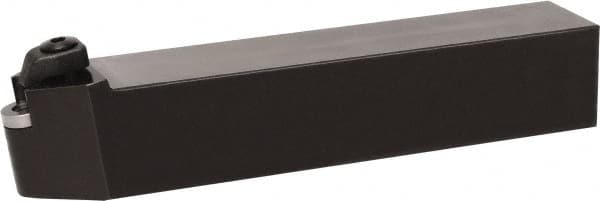

Kyocera - CRDN, Neutral Cut, 90° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 7" OAL, RNG 43.., RNG 45.., RNM 43.., RNM 45.. Insert Compatibility, Series CRDN
Item #: 50417807
Brand: Kyocera
Model #: 8820485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDN |
| Rake | Negative |
| Rake Angle | -8.5 (Radial) |
| Series | CRDN |
| Lead Angle | 90 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | RNG 43..; RNG 45..; RNM 43..; RNM 45.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 1.1300 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
