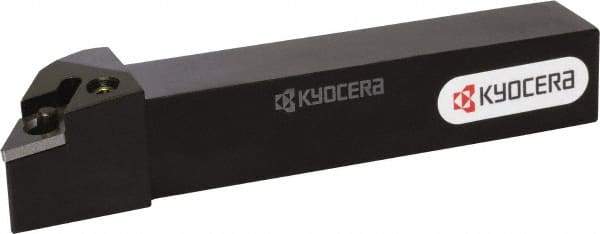

Kyocera - PDJN, Right Hand Cut, 93° Lead Angle, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 4-1/2" OAL, DN.. 33.. Insert Compatibility, Series PDJN
Item #: 50417781
Brand: Kyocera
Model #: 8801938
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PDJN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | PDJN |
| Lead Angle | 93 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | DN.. 33.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.1000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
