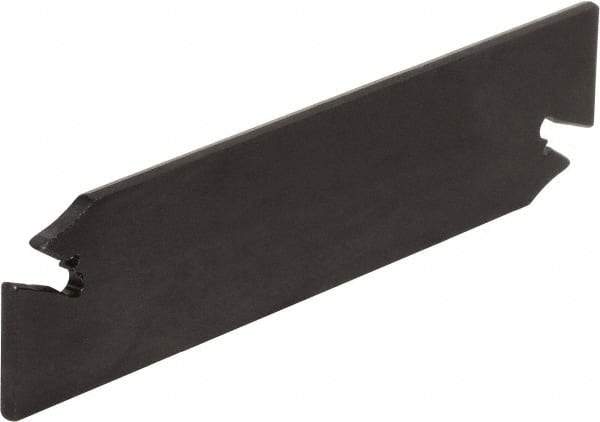

Kyocera - 1.2598" Blade Height, 0.2677" Blade Width, 5.9055" OAL, Left Hand Cut, Double End Indexable Cut-Off Blade - KTKB Blade, KTB-S Series
Item #: 50417724
Brand: Kyocera
Model #: 8812352
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 6.80 |
| Blade Width (Decimal Inch) | 0.2677 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | KTKB |
| Insert Style | TKN 8 |
| Insert Width (mm) | 8.00 |
| Insert Width (Decimal Inch) | 0.314961 |
| Series | KTB-S |
| Tool Block/Toolholder Style | KTKTB |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 4.7244 |
| Maximum Workpiece Diameter (mm) | 120 |
| Cutting Height (mm) | 25.00 |
| Cutting Height (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | TKN 8 |
| Complete Tool Block/Toolholder Style Compatibility | KTKTB 20-32; KTKTB 25-32; KTKTB 32-32; KTKTBF 25-32; KTKTBF 32-32 |
| Manufacturers Catalog Number | KTKBL328S |
| Insert Type | TKN |
| Type | Cut-Off Blade |
