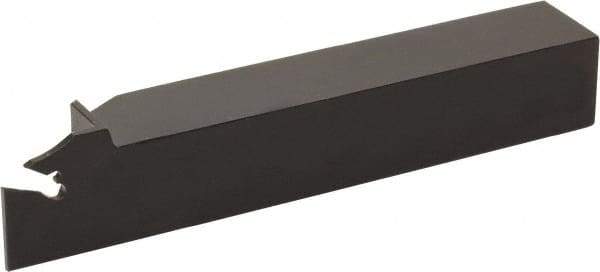

Kyocera - KTKHR, Right Hand Cut, 19mm Max Depth of Cut, 38mm Max Workpc Diam, TKN 2(-P), TKN 2.4, TKR/L 2(-P), TKR/L 2.4 Insert, Indexable Cutoff Toolholder - 125mm OAL, 20mm Shank Height, 102.2mm Shank Length
Item #: 50417088
Brand: Kyocera
Model #: 8806431
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Workpiece Diameter (mm) | 38.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4961 |
| Series | KTKH |
| Toolholder Style | KTKHR |
| Insert Compatibility | TKN 2(-P); TKN 2.4; TKR/L 2(-P); TKR/L 2.4 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Minimum Insert Width (mm) | 2.20 |
| Minimum Insert Width (Decimal Inch) | 0.0866 |
| Maximum Insert Width (mm) | 2.40 |
| Maximum Insert Width (Decimal Inch) | 0.0945 |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Height (mm) | 24.00 |
| Head Height (Decimal Inch) | 0.9449 |
| Head Length (mm) | 22.80 |
| Head Length (Decimal Inch) | 0.8976 |
| Shank Length (mm) | 102.20 |
| Shank Length (Decimal Inch) | 4.0236 |
| Height to Shank Top (mm) | 20.00 |
| Height to Shank Top (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | TKN 1.6; TKN 1.6-P; TKN 2; TKN 2.4; TKN 2-P; TKN 3; TKN 3-P; TKN 4; TKN 4.8; TKN 5; TKN 6; TKN 8; TKN 9; TKR/L 1.6; TKR/L 1.6-P; TKR/L 2; TKR/L 2.4; TKR/L 2-P; TKR/L 3; TKR/L 3-P; TKR/L 4; TKR/L 5 |
