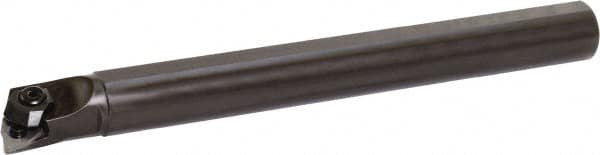

Kyocera - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, S...WWLN-E Indexable Boring Bar - 50mm Max Bore Depth, WNGA 43.., WNMA 43.., WNMG 43.., WNMM 43.., WNMP 43.. Insert, Screw Clamping Holding Method
Item #: 50415215
Brand: Kyocera
Model #: 8807003
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S...WWLN-E |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | WNGA 43..; WNMA 43..; WNMG 43..; WNMM 43..; WNMP 43.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 20.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7874 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -10 |
| Complete Insert Compatibility | WNGA 431S00525ME; WNGA 431S00525SE; WNGA 431S00730MET; WNGA 431S00730SET; WNGA 431T00515ME; WNGA 431T00625; WNGA 432S00525ME; WNGA 432S00525SE; WNGA 432S00730MET; WNGA 432S00730SET; WNGA 432T00515ME; WNGA 432T00625; WNGA 432T00625AA; WNGA 433S00525ME; WNG |
| Toolholder Material | Steel |
