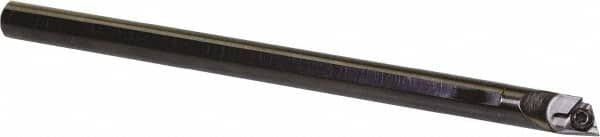

Kyocera - 20mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, S...STWP-E Indexable Boring Bar - 35mm Max Bore Depth, TPET 22.., TPGB 22.., TPGH 22.., TPMH 22.., TPMT 22.. Insert, Screw Holding Method
Item #: 50415157
Brand: Kyocera
Model #: 8813220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S...STWP-E |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | TPET 22..; TPGB 22..; TPGH 22..; TPMH 22..; TPMT 22.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 60 |
| Center to Cutting Edge (mm) | 10.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3937 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPET 22013MFR/L-USF; TPET 22013MR/L-FSF; TPET 2201FR/L-USF; TPET 2201R/L-FSF; TPET 2202FR/L-USF; TPET 2202MFR/L-USF; TPET 2202MR/L-FSF; TPET 2202R/L-FSF; TPET 2205FR/L-USF; TPET 2205MFR/L-USF; TPET 2205MR/L-FSF; TPET 2205R/L-FSF; TPGB 22013; TPGB 2202; TP |
| Toolholder Material | Steel |
