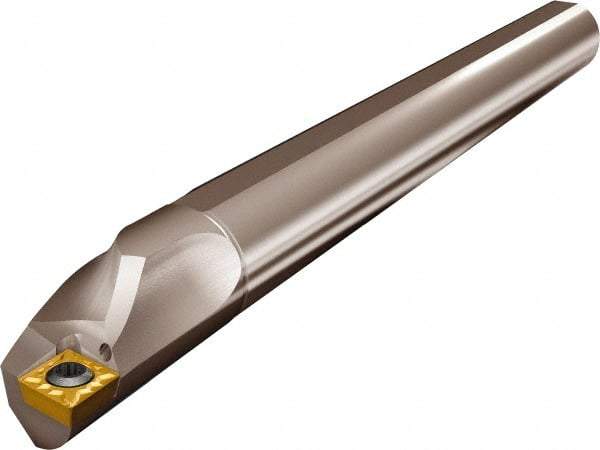

Kyocera - 27mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, A/S-SCLC-AE Indexable Boring Bar - 46mm Max Bore Depth, CCET 32.5.., CCGT 32.5.., CCGW 32.5.., CCMT 32.5.., CCMW 32.5.. Insert, Screw Holding Method
Item #: 50415058
Brand: Kyocera
Model #: 8828981
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-SCLC-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 27.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.0630 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 46.00 |
| Maximum Bore Depth (Decimal Inch) | 1.8110 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CCET 32.5..; CCGT 32.5..; CCGW 32.5..; CCMT 32.5..; CCMW 32.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 13.50 |
| Center to Cutting Edge (Decimal Inch) | 0.5315 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -6 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | CCET 325013MFR/L-U; CCET 325013MFR/L-USF; CCET 32501FR/L-USF; CCET 32502FR/L-USF; CCET 32502MFR/L-J; CCET 32502MFR/L-U; CCET 32502MFR/L-USF; CCET 32505FR/L-USF; CCET 32505MFR/L-J; CCET 32505MFR/L-U; CCET 32505MFR/L-USF; CCET 3251MFR/L-J; CCET 3251MFR/L-U; |
| Toolholder Material | Steel |
