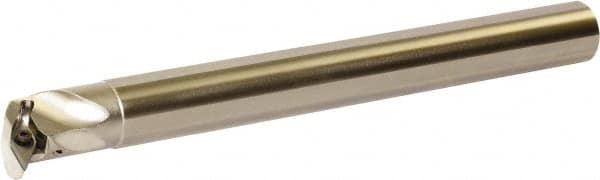

Kyocera - 26mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, A-SVPC(B)-AE Indexable Boring Bar - 41mm Max Bore Depth, VBET 22.., VBGT 22.., VBGW 22.., VBMT 22.. Insert, Screw Holding Method
Item #: 50414929
Brand: Kyocera
Model #: 8827409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVPC(B)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 26.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.0236 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 41.00 |
| Maximum Bore Depth (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | VBET 22..; VBGT 22..; VBGW 22..; VBMT 22.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 27.50 |
| Center to Cutting Edge (mm) | 15.50 |
| Center to Cutting Edge (Decimal Inch) | 0.6102 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -5 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | VBET 22013MR/L-F; VBET 22013MR/L-Y; VBET 22015MR/L-FSF; VBET 2201R/L-FSF; VBET 2202MR/L-F; VBET 2202MR/L-FSF; VBET 2202MR/L-Y; VBET 2202R/L-FSF; VBET 2205MR/L-F; VBET 2205MR/L-FSF; VBET 2205MR/L-Y; VBET 2205R/L-FSF; VBET 221MR/L-Y; VBGT 22013MR/L-F; VBGT |
| Toolholder Material | Steel |
