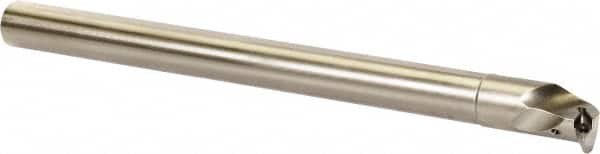

Kyocera - 16mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, A-SVUC(B)-AE Indexable Boring Bar - 25.5mm Max Bore Depth, VCGW 1515.., VCMT 1515.. Insert, Screw Holding Method
Item #: 50414747
Brand: Kyocera
Model #: 8827414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVUC(B)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 25.50 |
| Maximum Bore Depth (Decimal Inch) | 1.0039 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | VCGW 1515..; VCMT 1515.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 11.50 |
| Center to Cutting Edge (Decimal Inch) | 0.4528 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Rake Angle | -8 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | VCGW 151505S00435MET; VCGW 151505T00315ME; VCGW 151505T00315SE; VCGW 15151S00435MET; VCGW 15151S00435SET; VCGW 15151T00315ME; VCGW 15151T00315SE; VCGW 15152S00435MET; VCGW 15152S00435SET; VCGW 15152T00315ME; VCMT 151502; VCMT 151502NE; VCMT 151505; VCMT 1 |
| Toolholder Material | Steel |
