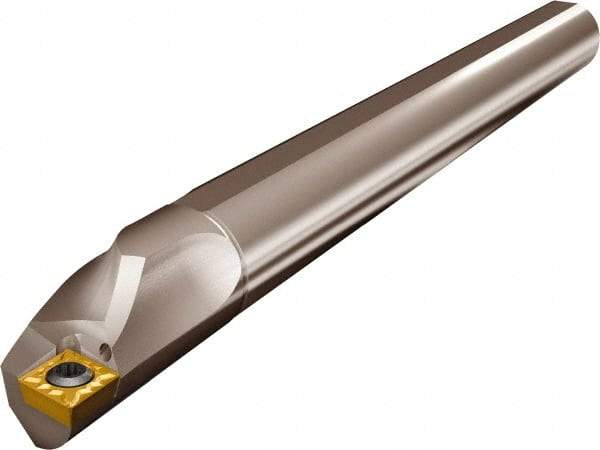

Kyocera - 14mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, S-SCLP-A Indexable Boring Bar - 24mm Max Bore Depth, CPGB 2515.., CPMB 2515.., CPMH 2515.., CPMT 2515.. Insert, Screw Holding Method
Item #: 50414713
Brand: Kyocera
Model #: 8829005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLP-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 14.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5512 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 24.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9449 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CPGB 2515..; CPMB 2515..; CPMH 2515..; CPMT 2515.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3125 |
| Rake Angle | -4 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | CPGB 251505T00315SE; CPGB 25151S00435MET; CPGB 25151T00315ME; CPGB 25151T00315SE; CPGB 25152S00435MET; CPMB 251505; CPMB 25151; CPMB 25152; CPMH 251502; CPMH 251502NE; CPMH 251505; CPMH 251505NE; CPMH 25151; CPMH 25151 -Y; CPMH 25151HQ; CPMH 25151NE; CPMH |
| Toolholder Material | Steel |
