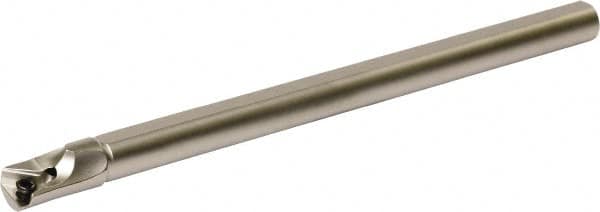

Kyocera - 0.48" Min Bore Diam, 6" OAL, 3/8" Shank Diam, A/S-STLB(P)-AE Indexable Boring Bar - 0.787" Max Bore Depth, TPET 22.., TPGB 22.., TPGH 22.., TPMH 22.., TPMT 22.. Insert, Screw Holding Method
Item #: 50414622
Brand: Kyocera
Model #: 8826503
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-STLB(P)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (Decimal Inch) | 0.4800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.7870 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TPET 22..; TPGB 22..; TPGH 22..; TPMH 22..; TPMT 22.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2360 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -10 |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | TPET 22013MFR/L-USF; TPET 22013MR/L-FSF; TPET 2201FR/L-USF; TPET 2201R/L-FSF; TPET 2202FR/L-USF; TPET 2202MFR/L-USF; TPET 2202MR/L-FSF; TPET 2202R/L-FSF; TPET 2205FR/L-USF; TPET 2205MFR/L-USF; TPET 2205MR/L-FSF; TPET 2205R/L-FSF; TPGB 22013; TPGB 2202; TP |
| Toolholder Material | Steel |
