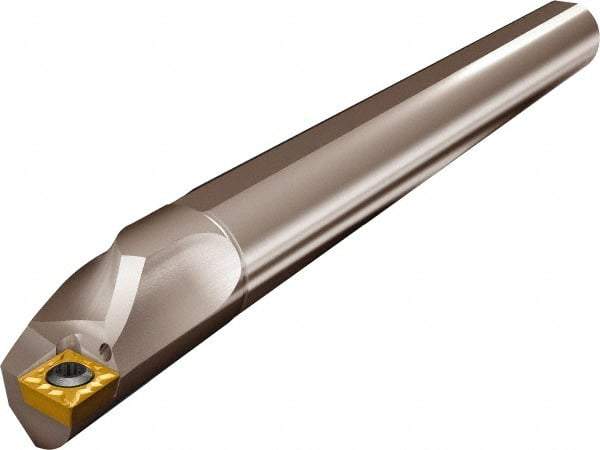

Kyocera - 5mm Min Bore Diam, 100mm OAL, 10mm Shank Diam, A/S-SCLC-AE Indexable Boring Bar - 24mm Max Bore Depth, CCET 1109.., CCGT 1109.., CCMW 1109.. Insert, Screw Holding Method
Item #: 50414606
Brand: Kyocera
Model #: 8828984
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-SCLC-AE |
| Minimum Bore Diameter (mm) | 5.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.1969 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 24.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9449 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | CCET 1109..; CCGT 1109..; CCMW 1109.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 2.50 |
| Center to Cutting Edge (Decimal Inch) | 0.0984 |
| Insert Thickness (Decimal Inch) | 0.0550 |
| Insert Inscribed Circle (Decimal Inch) | 0.1380 |
| Rake Angle | -15 |
| Complete Insert Compatibility | CCET 1109013MR/L-F; CCET 1109013MR/L-FSF; CCET 110901R/L-FSF; CCET 110902MR/L-F; CCET 110902MR/L-FSF; CCET 110902R/L-FSF; CCET 110905MR/L-F; CCET 110905MR/L-FSF; CCET 110905R/L-FSF; CCET 11091MR/L-F; CCET 11091MR/L-FSF; CCET 11091R/L-FSF; CCGT 1109013MR/L |
| Toolholder Material | Steel |
