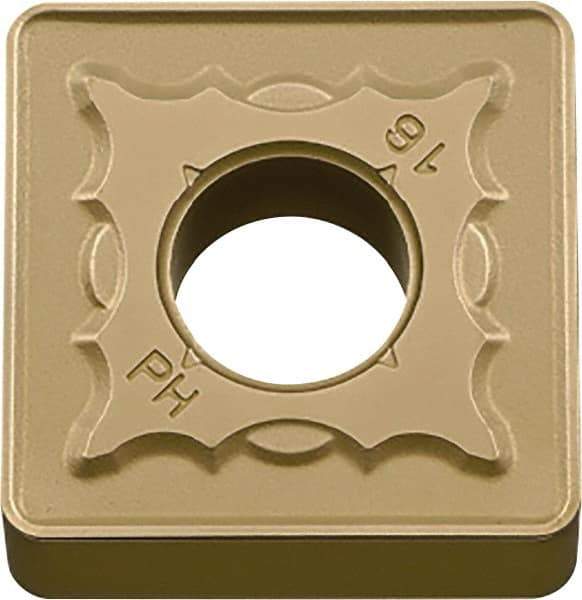

Kyocera - SNMG434 PH Grade CA525 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 50408442
Brand: Kyocera
Model #: 8840736
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 434 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.5875 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | CA525 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PH |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | SNMG120416PH |
| Rake | Negative |
| Rake Angle | 20 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNMG434PH CA525 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Square |
