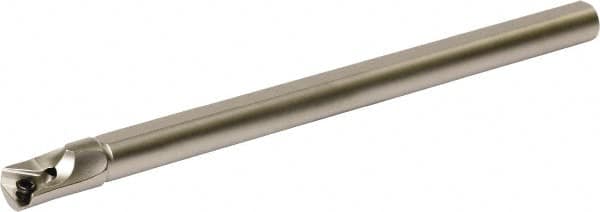

Kyocera - 0.392" Min Bore Diam, 5" OAL, 0.312" Shank Diam, A/S-STLB(P)-AE Indexable Boring Bar - 0.63" Max Bore Depth, TPGB 1815.., TPGH 1815.., TPMH 1815.., TPMT 1815.. Insert, Screw Holding Method
Item #: 50397678
Brand: Kyocera
Model #: 8826502
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-STLB(P)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (Decimal Inch) | 0.3920 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.6300 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Insert Compatibility | TPGB 1815..; TPGH 1815..; TPMH 1815..; TPMT 1815.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.1970 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Insert Inscribed Circle (Decimal Inch) | 0.2188 |
| Rake Angle | -10 |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Complete Insert Compatibility | TPGB 181505; TPGB 181505NE; TPGB 181505S00435SET; TPGB 181505T00315; TPGB 181505T00315SE; TPGB 18151; TPGB 18151NE; TPGB 18151S00435SET; TPGB 18151T00315; TPGB 18151T00315SE; TPGB 18152; TPGB 18152NE; TPGH 181502MR/L; TPGH 181502R/L; TPGH 181505MR/L; TPGH |
| Toolholder Material | Steel |
