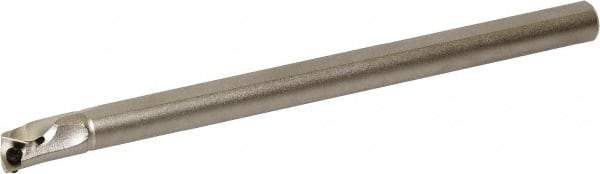

Kyocera - 10mm Min Bore Diam, 120mm OAL, 8mm Shank Diam, S/A-SWUB(P)-AE Indexable Boring Bar - 16mm Max Bore Depth, WBGT 1515.., WBGW 1515.., WBMT 1515.., WPGT 1515.., WPGW 1515.., WPMT 1515.., WPMW 1515.. Insert, Screw Holding Method
Item #: 50397652
Brand: Kyocera
Model #: 8827376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S/A-SWUB(P)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 10.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 16.00 |
| Maximum Bore Depth (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | WBGT 1515..; WBGW 1515..; WBMT 1515..; WPGT 1515..; WPGW 1515..; WPMT 1515..; WPMW 1515.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.1875 |
| Rake Angle | -13 |
| Coolant Hole Diameter (mm) | 2.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.0984 |
| Complete Insert Compatibility | WBGT 1515013MR/L-F; WBGT 151501R/L-F; WBGT 151502MR/L-F; WBGT 151502R/L-F; WBGT 151505MR/L-F; WBGT 151505R/L-F; WBGT 15151MR/L-F; WBGT 15151R/L-F; WBGW 151502R/L; WBGW 151505S00435R/LSET; WBGW 151505T00315R/LSE; WBGW 15151R/L; WBGW 15151S00435R/LSET |
| Toolholder Material | Steel |
