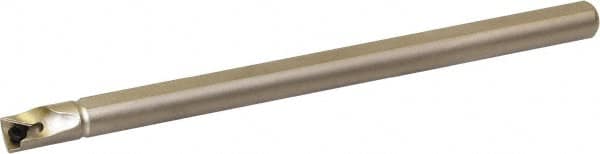

Kyocera - 12mm Min Bore Diam, 140mm OAL, 10mm Shank Diam, A-STLC-AE Indexable Boring Bar - 20mm Max Bore Depth, TCGT 215.., TCMT 215.. Insert, Screw Holding Method
Item #: 50397595
Brand: Kyocera
Model #: 8829074
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STLC-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 12.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4724 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 20.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | TCGT 215..; TCMT 215.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 6.20 |
| Center to Cutting Edge (Decimal Inch) | 0.2441 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -12 |
| Coolant Hole Diameter (mm) | 3.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | TCGT 21502R/L; TCGT 21505R/L; TCGT 2151R/L; TCMT 21505HQ; TCMT 2151HQ; TCMT 2152HQ |
| Toolholder Material | Steel |
