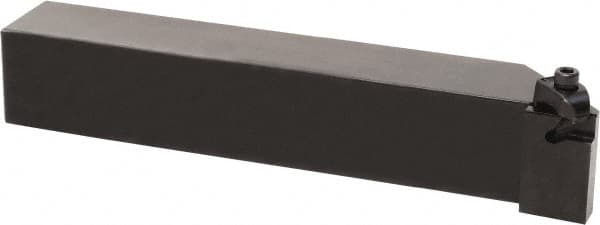

Kyocera - KKC, External, Left Hand, 0.138" Max Depth of Cut, 0.031 to 1/4" Groove Width, Indexable Grooving Tool Holder - KC.. 20.., KC.. 21.., KC.. 30.., KC.. 31.., KC.. 41.., KC.. 42.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 50396985
Brand: Kyocera
Model #: 8604043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | KKC |
| Insert Compatibility | KC.. 20..; KC.. 21..; KC.. 30..; KC.. 31..; KC.. 41..; KC.. 42.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | KKC |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp or Screw |
| Maximum Hole Depth (Decimal Inch) | 0.7500 |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Height (Decimal Inch) | 1.3620 |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 5.2500 |
| Manufacturers Catalog Number | KKCL162D |
| Height to Shank Top (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | KCG 2062; KCG 2094; KCG 2125; KCGP 2031; KCGP 2041; KCGP 2047; KCGP 2058; KCGP 2062; KCGP 2094; KCGP 2125; KCRP 2031; KCRP 2047; KCRP 2062 |
