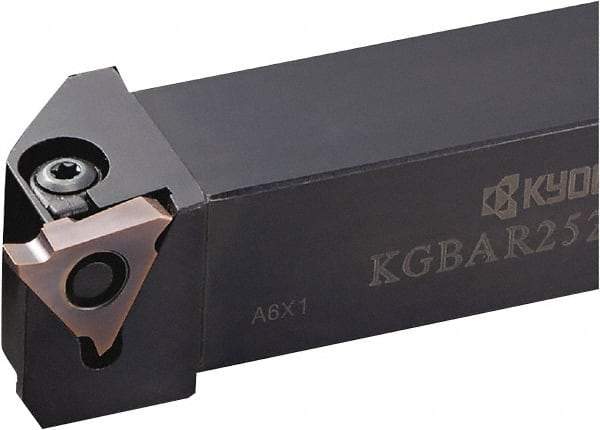

Kyocera - KGBA, External, Right Hand, 2.5mm Max Depth of Cut, 0.013 to 0.189" Groove Width, Indexable Grooving Tool Holder - GBA32R/L.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 50396845
Brand: Kyocera
Model #: 8809884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 2.50 |
| Minimum Groove Width (Decimal Inch) | 0.0130 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | KGBA |
| Insert Compatibility | GBA32R/L.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | KGBA |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| igrvh Maximum Bore Depth (mm) | 24.00 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Height (Decimal Inch) | 0.9449 |
| Head Height (mm) | 24.00 |
| Head Length (mm) | 24.00 |
| Head Length (Decimal Inch) | 0.9449 |
| Shank Length (mm) | 101.00 |
| Shank Length (Decimal Inch) | 3.9764 |
| Manufacturers Catalog Number | KGBAR2020K16 |
| Complete Insert Compatibility | GBA32R/L 031N; GBA32R/L 033-005; GBA32R/L 041N; GBA32R/L 047N; GBA32R/L 050-005; GBA32R/L 058N; GBA32R/L 062N; GBA32R/L 075-005; GBA32R/L 078N; GBA32R/L 094N; GBA32R/L 095-005; GBA32R/L 100-005; GBA32R/L 110-005; GBA32R/L 120-005; GBA32R/L 125-020; GBA32R |
