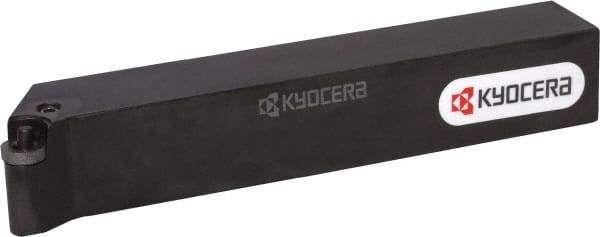

Kyocera - PRGC, Right Hand Cut, 90° Lead Angle, 16mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, RC.. 12.. Insert Compatibility, Series PRGC
Item #: 50396480
Brand: Kyocera
Model #: 8820501
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PRGC |
| Rake | Neutral |
| Rake Angle | 0 (Axial); 0 (Radial) |
| Series | PRGC |
| Lead Angle | 90 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | RC.. 12.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning; Facing |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 0.6000 |
| Insert Inscribed Circle (Decimal Inch) | 0.4720 |
