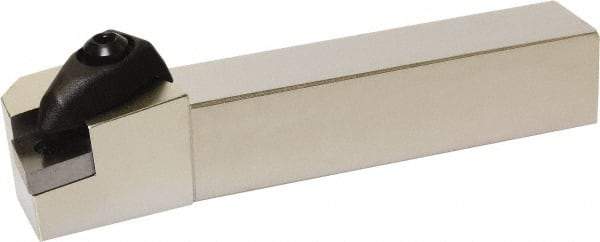

Kyocera - DCLN, Left Hand Cut, 95° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, CN.. 43.. Insert Compatibility, Series DCLN
Item #: 50396340
Brand: Kyocera
Model #: 8819011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Rake Angle | -6 (Axial); -6 (Radial) |
| Series | DCLN |
| Lead Angle | 95 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CN.. 43.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
