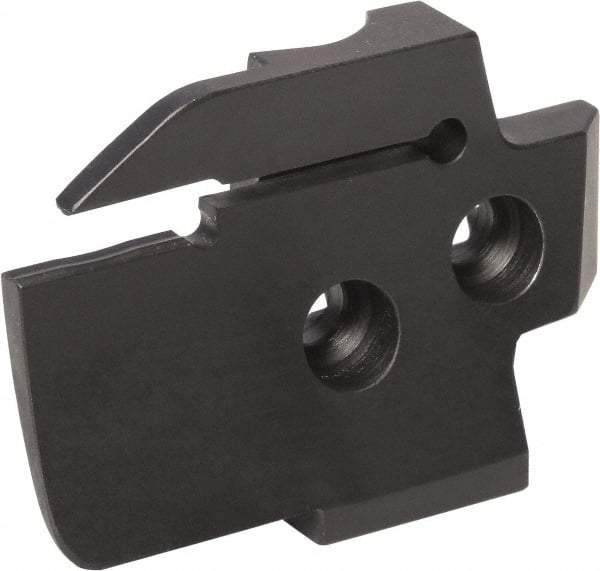

Kyocera - 3.048mm Groove Width, 24.9936mm Max Depth of Cut, Left Hand Cut, KGDF Indexable Grooving Blade - GD..20N-040.. Insert Style
Item #: 50396225
Brand: Kyocera
Model #: 8834635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 24.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Blade Style | KGDF |
| Minimum Workpiece Diameter (mm) | 100.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 3.9370 |
| Maximum Workpiece Diameter (mm) | 150.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 5.9055 |
| Blade Height (mm) | 41.50 |
| Blade Height (Decimal Inch) | 1.6339 |
| Blade Width (mm) | 4.00 |
| Blade Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 3.05 |
| Maximum Groove Width (Decimal Inch) | 0.1200 |
| Blade Overall Length (Decimal Inch) | 2.3400 |
| Manufacturers Catalog Number | KGDFL1004CC |
| Insert Style | GD..20N-040.. |
| Complete Insert Compatibility | GDFM 4020N-040DM; GDFM 4020N-040GM; GDFMS 4020N-040DM |
| MSC/Manufacturer Number | 8834635 |
